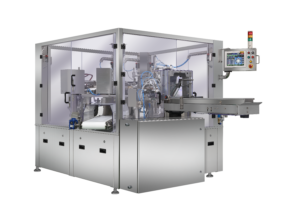

Highly Reliable Rotary Pre-Made Pouch Filling Machine
Pre-made Pouch Filling Machine Specifications
- Pre-made pouch filling products include: Flat Pouch, Standup Pouch, Zipper Pouch, Corner Spout Pouch, Shaped Pouch, Pre-Spouted Pouch
- Machine Maximum Speed: Up to 60 Bags/Min
- Dual-up Maximum Speed: Up to 100 Bags/Min (see video below)
- Pouch Size (doy with zipper): Width – 100 to 240mm, Length – 150 to 350mm
- Standard Electrical: 220v/480V 30amp Three Phase
- Compressed air: 80L/min @6 bar
- Customized configurations are available
Machine Features
- Fully Automatic Pre-Made Pouch Filling and Sealing Machine
- Intermittent rotary motion with 8-stations.
- 5-minute pouch change
- PLC Control with touch screen operation
- Stainless Steel 304, AL-Alloy and plastic construction
- High accuracy, high durability, mechanical cams
- 8 sets of motorized grippers
- Self-monitoring with alarms
Why FASTech…
FASTech offers pre-made pouch filling machines that deliver high quality and reliability!
FASTech can include a variety of printing solutions to print on every pouch, including fast drying HP style cartridge printers for high speed multi-head print technology.
FASTech also offers Checkweighers at the machine discharge for product accuracy. These highly accurate machines reject any out of spec product, on the fly.
See a dual action machine in action in this video…
